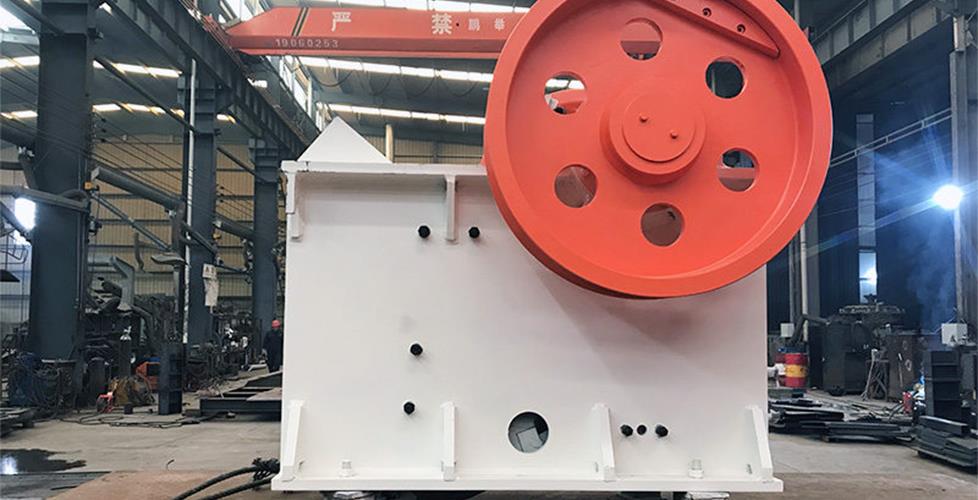

Rock breaking machine
Our jaw crusher adopts innovative modularized, non-welded structure frame, high-quality alloy steel castings and rolling bearings, which greatly improves the fatigue resistance and operational reliability of the equipment, and fully guarantees the high output, High efficiency and low cost, a variety …
Introduction:
Our jaw crusher adopts innovative modularized, non-welded structure frame, high-quality alloy steel castings and rolling bearings, which greatly improves the fatigue resistance and operational reliability of the equipment, and fully guarantees the high output, High efficiency and low cost, a variety of flexible installation methods to meet different application options.
Parameters:
Model Feeding Size(mm) Discharge Gate size (mm) Capacity(t/h) Motor Power(kw) Overall Dimension(mm)
PE150×250 ≤130 15-45 1月4日 5.5 896×745×935
PE250×300 ≤150 15-55 3月6日 7.5 1050×987×1000
PE250×400 ≤210 25-60 5月20日 15 1215×1520×1030
PE400×600 ≤350 40-90 15-60 30 1650×1588×1050
PE500×750 ≤425 50-100 40-110 45 1956×1918×1920

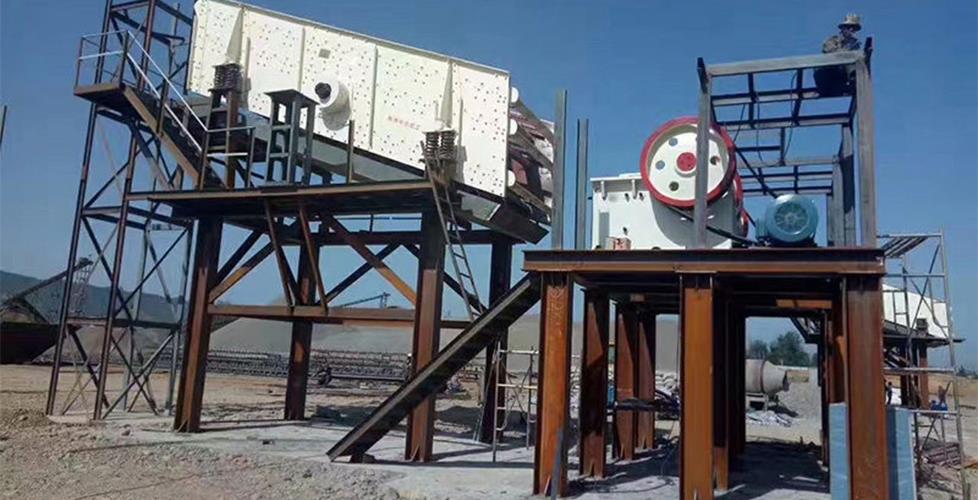

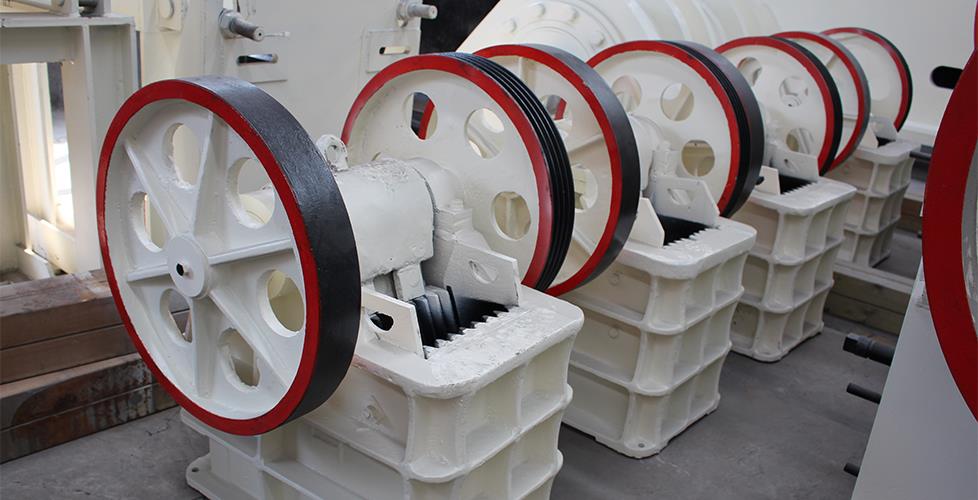

Display:
Video:
